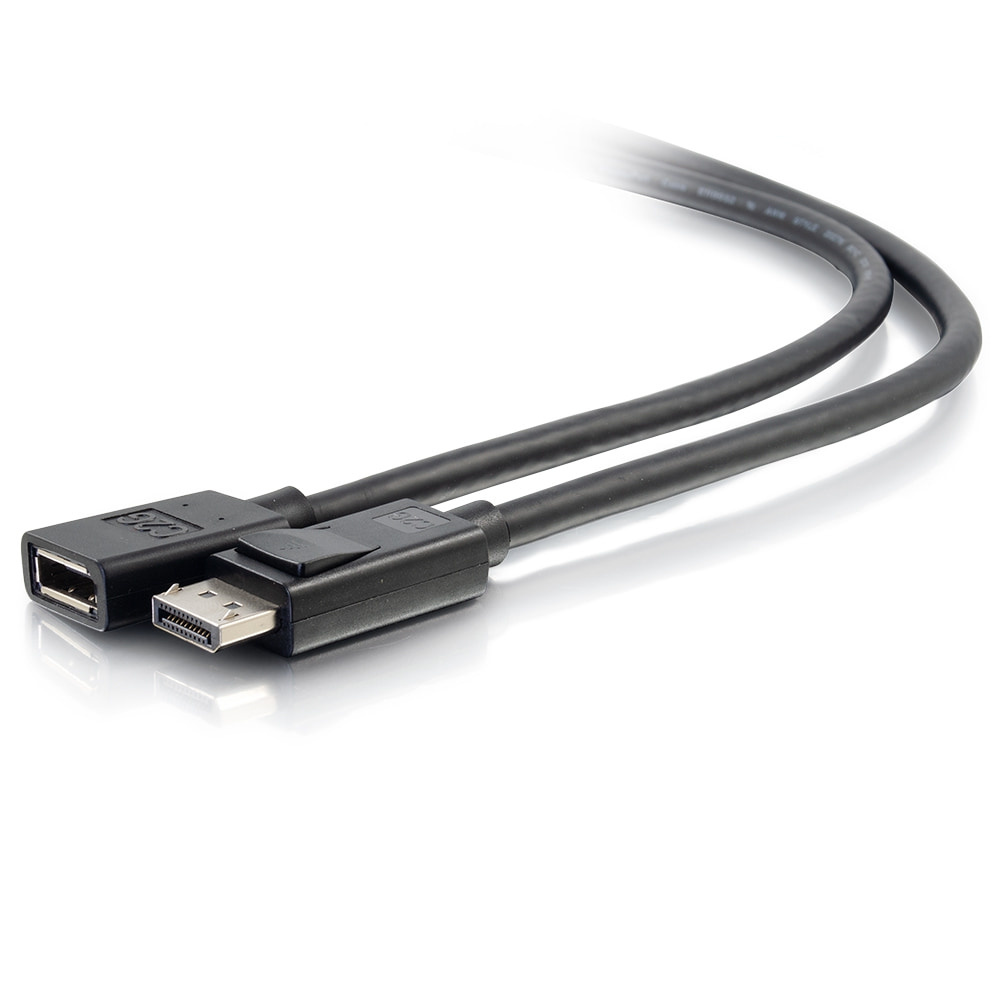

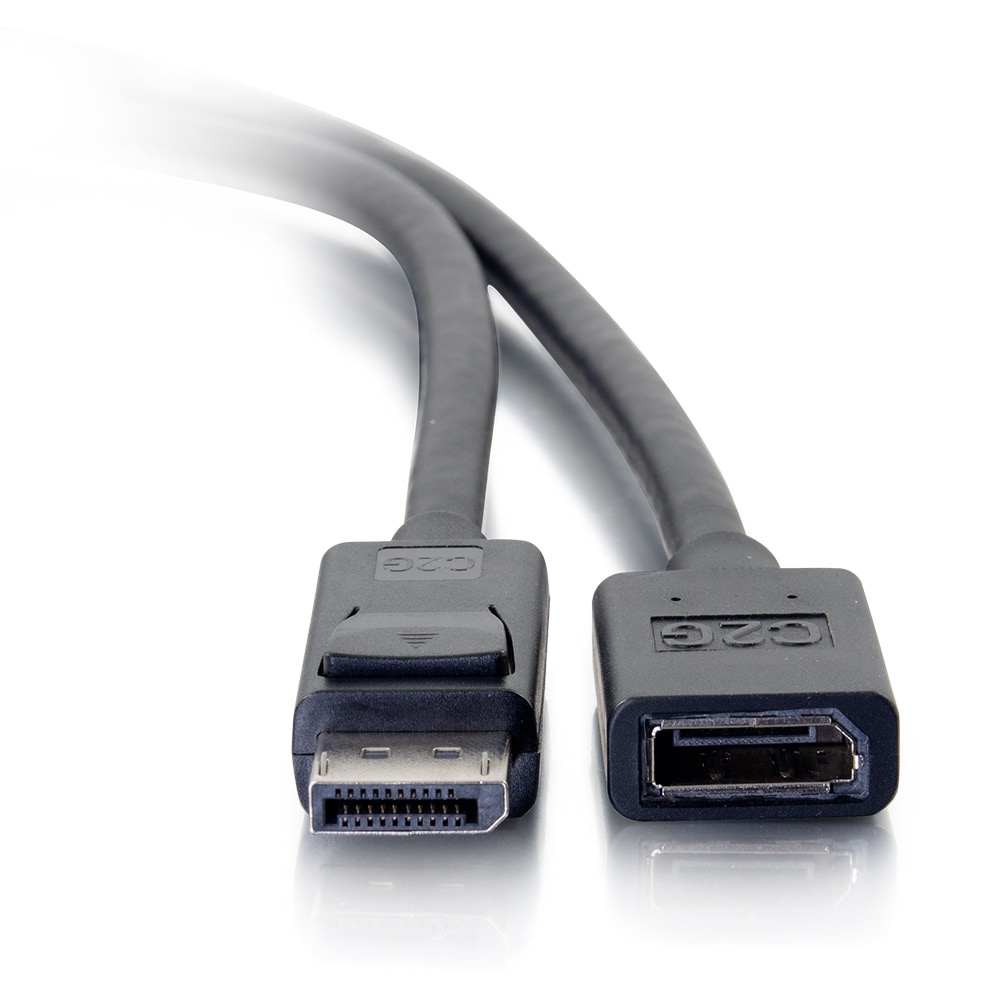

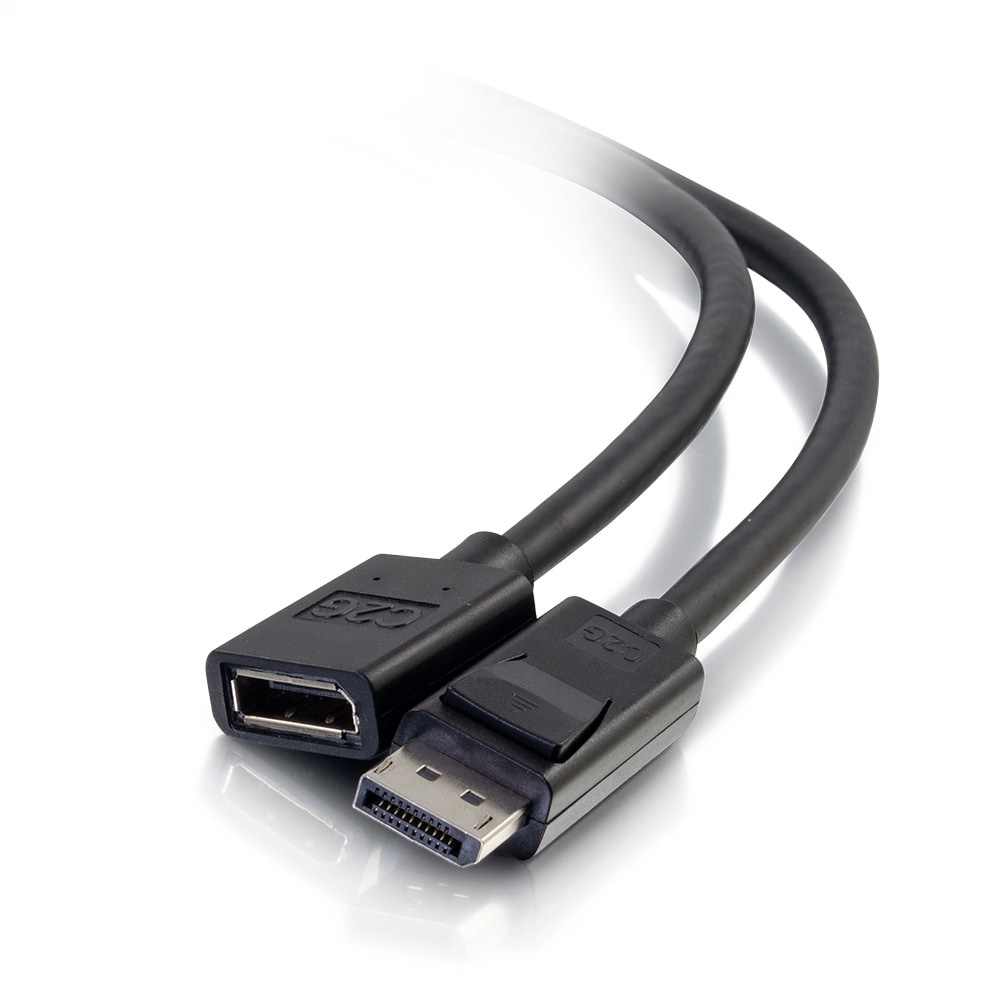

6ft (1.8m) DisplayPort™ Male to Female Extension Cable
#54451
C2G
Bazaarvoice SAP Hybris Integration Version 2.8.1
$19.39 $38.99 MSRP USD
This DisplayPort Male to Female Extension Cable is an ideal solution for adding length to an existing DisplayPort cable or extending the DisplayPort output of a computer or display. This extension cable supports High Bit Rate (HBR) bandwidth DisplayPort cables that carry up to a 8K UHD (7680 x 4320) resolution. Built to DisplayPort 1.4 standards, this cable meets the requirements of high performance applications.
Note: This extension cable is not designed to be used with a DisplayPort adapter converter or a DisplayPort adapter cable.
Note: This extension cable is not designed to be used with a DisplayPort adapter converter or a DisplayPort adapter cable.
Connector 1:
(1) DisplayPort Male
Connector 2:
(1) DisplayPort Female
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
- Send
- Save as PDF
Features
- DisplayPort Male to DisplayPort Female connection
- Supports a High Bit Rate (HBR) bandwidth
- Supports resolutions up to 8K UHD (7680 × 4320)
- DisplayPort 1.4 standards
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Specifications
General Info
| Color | Black | ||
| Type | Active Device, Cable | ||
| Material | PVC | ||
| Application Sector | Commercial, Residential | ||
| Product Line | C2G | ||
| Country Of Origin | China | ||
| UPC Number | 757120544517 |
Dimensions
| Cable Length | 6 ft | ||
| Product Length US | 6.0 FT | ||
| Outside Diameter | 7.3 mm |
Technical Information
| Active/Passive | Active | ||
| Cable Diameter | 7.3 mm | ||
| Bend Radius | 73 mm | ||
| Cable Type | Extension, Video | ||
| Data Transfer Rate | 10.8 Gbps | ||
| Jacket Material | PVC (Polyvinyl Chloride) | ||
| Jacket Rating | Standard / Non-Rated | ||
| Operating Temperature | -20°-80°C | ||
| Storage Humidity | 20-80% RH (Non-Condensing) | ||
| Shielded/Unshielded Cable | Shielded | ||
| Storage Temperature | -20° - 80° C | ||
| Video Resolution | 1080p, 4K, 4K 30Hz, 4K 60Hz, 8K | ||
| Video Input Support | DisplayPort | ||
| Video Output Support | DisplayPort | ||
| Voltage | 30.0 V |
Resources
Cutsheet
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
What are the environmental spec for this item? The datasheet does not provide this info. Particularly what is the operating and storage temperature and humidity specs?
operating temp:0~80℃
storage temp:-20~+80℃
humidity specs:MAX 85%
Date published: 2024-12-11
