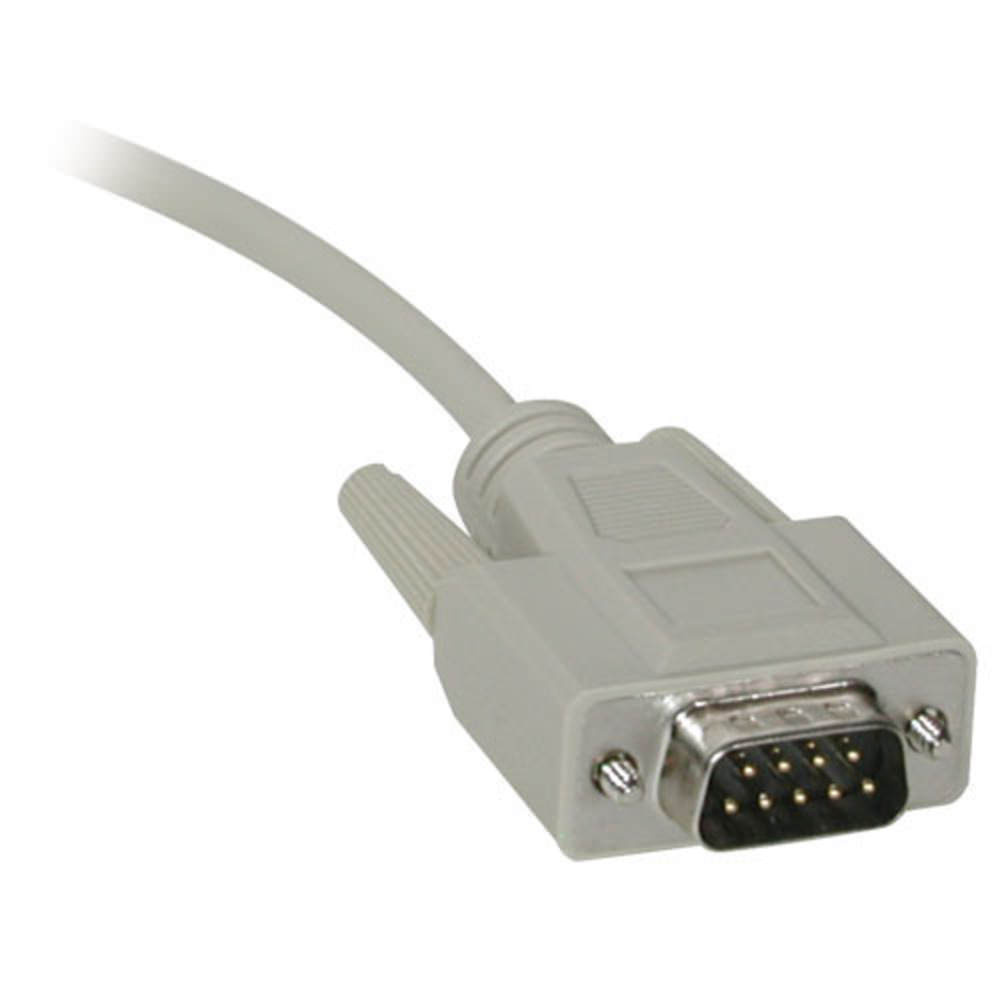

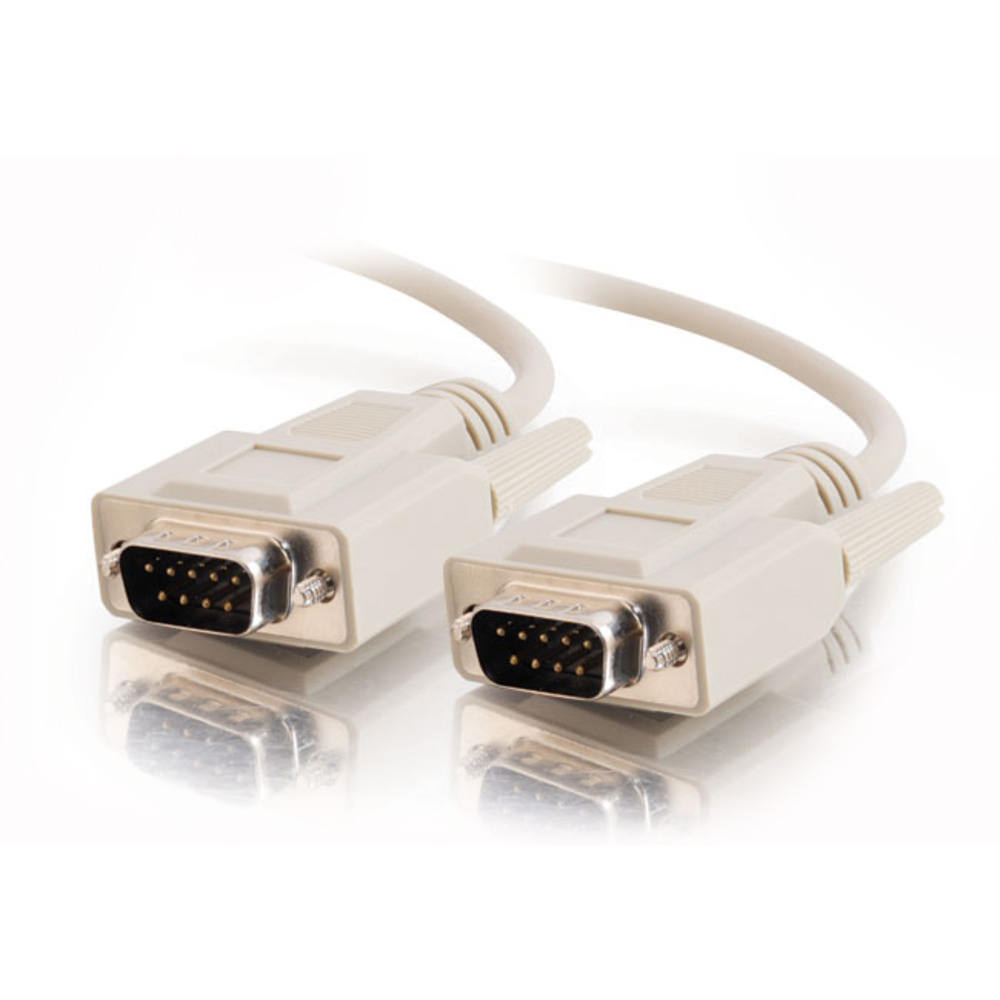

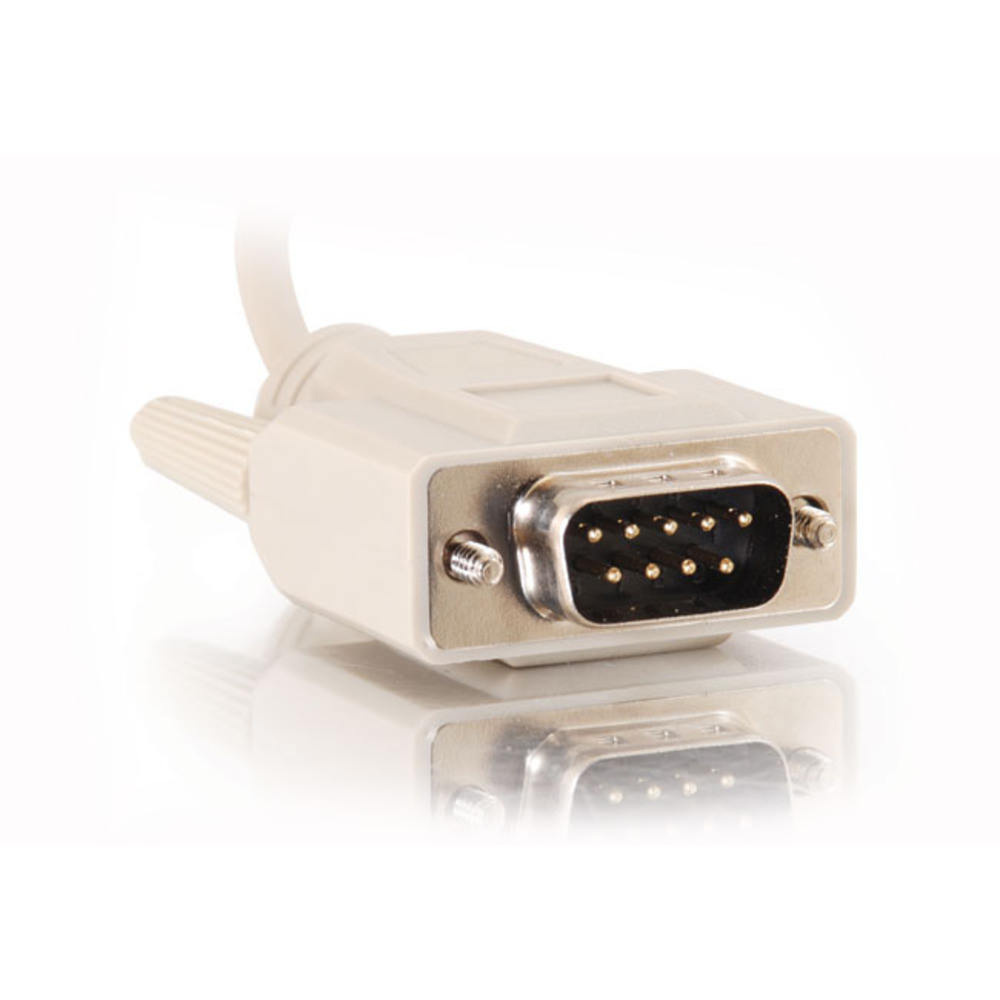

Discontinued - 3ft (0.9m) DB9 M/M Serial RS232 Cable - Beige

#25221 C2G
DB9 M/M Serial RS232 Cable is rated 4.8 out of 5 by 12.
  • y_2024, m_3, d_28, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_12
  • loc_en_US, sid_25221, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 70ms
  • REVIEWS, PRODUCT


Don't sacrifice convenience when determining where to place your hardware. Connect your peripheral to a switchbox, or replace a short cable that restricts your flexibility. Each cable comes fully shielded to prevent unwanted EMI/RFI interference, and the fully molded cable design delivers excellent strain relief. Connector thumbscrews provide a quick and easy connection every time. All lines are wired straight through.
Connector 1:
(1) DB9 Male
Connector 2:
(1) DB9 Male
Color Beige
Length 3 ft
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Straight through pin-to-pin wiring
  • Shielded to prevent unwanted EMI/RFI interference
  • Connector thumbscrews for a quick and easy connection

Specifications

General Info
Product Line C2G
Color Beige
UPC Number 757120252214
Country Of Origin China
Features RS232
Application Sector Commercial, Industrial, Residential
Warranty Type Lifetime
Type Cable
Dimensions
Cable Length 3 ft
Technical Information
Jacket Material PVC (Polyvinyl Chloride)
Wire Gauge 28 AWG
Cable Type Serial
Jacket Rating Standard / Non-Rated

Resources

Reviews

Rated 4 out of 5 by from I will buy this product again!!!! This is a great product and makes our control panels easy to assemble. It would be nice if the cables had flying leads or could custom make the cables.
Date published: 2010-10-05
Rated 5 out of 5 by from 15ft DB9 M/M Cable Needed a longer cable for my washer/dryer combo. Clerks at a leading electronics store thought I was crazy! This was the first place I found what I needed. It worked perfectly and the shipping was incredibly quick!
Date published: 2012-11-01
Rated 5 out of 5 by from DB9 aka RS232 Connecter Cable I needed to down load some software to my ham radio Transceiver, and USB wasn't working. I was amazed that 1. I no longer had an RS232 cable, and 2. it was still possible to buy one. Worked like a charm!
Date published: 2011-10-20
Rated 4 out of 5 by from I would buy this product again. Used at our place of business.
Date published: 2009-08-26
Rated 5 out of 5 by from Extremly Good Quality and Value I use these in a RF enviroment controling HF transmiting equipment, Cables are great quality no issues.
Date published: 2011-06-27
Rated 5 out of 5 by from Hard to find cable I was looking for a hard to find 6' ADAT sync cable. C2G was the only place I found that had one. I needed to sync and Alesis ADAT to my DAW and the normal 3' cables wouldn't do. I hooked up the sync cable and it works, just as expected. I not only found the cable I was searching for, I found a great source for many cables. I'll be back.
Date published: 2021-03-01
Rated 5 out of 5 by from The right cables for the job I needed this specific length which I was unable to find among the usual suspects. It was easy enough obtaining them from Cables to Go online.
Date published: 2009-05-08
Rated 5 out of 5 by from Great source for rare cables Only source for 12" M-M RS-232 cable I found. Thumbscrews removable if needed. Awesome service.
Date published: 2021-01-11
  • y_2024, m_3, d_28, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_12
  • loc_en_US, sid_25221, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 20ms
  • REVIEWS, PRODUCT

Questions & Answers

What is the outside diameter of the cable?

Asked by: Jeremy
The O.D. of this cable is 4.5mm.
Answered by: Paul
Date published: 2018-09-27

On Part # 52087 DB9 M/M can you tell me if there is a drain wire in this cable going from shell to shell

Asked by: barry
In product 52087 there is a drain wire that runs from shell to shell.
Answered by: Sean
Date published: 2017-10-05

does this cable have all 9 conductors?

Asked by: Anonymous
Yes. It is wired all lines straight through.
Answered by: Steve
Date published: 2017-10-05

Do you carry db9 patch cords that only have 2,3 and 5 connected on both ends? Thank you, John

Asked by: John
We do not carry this as a standard cable. You would need to submit a request for quote in order to ensure that pin out.
Answered by: Michael
Date published: 2017-10-06

Do you know if this cable is straight through or Null (Cross)?

Asked by: Anonymous
All lines are wired straight through.
Answered by: Steve
Date published: 2017-10-06

Are the cables identifiable if it is necessary to cut and end off and put into screw terminal?

Asked by: ynk1
There is a color code on the wiring inside the cable, and markings on the cable jacket for identification.
Answered by: Thomas
Date published: 2019-10-03

I require this cable in 24AWG wire or heavier wire. Anyone know what the wire gauge is on the 9 wires in this cable? Spec doesn't list it.

Asked by: Machine Builder
Product 09449 uses 28AWG conductors.
Answered by: Sean
Date published: 2017-10-05

For item #52087, what is the color code of the inside conductors in relation to the pinout? I'm looking to match this up to an existing cable and need to know if I will need to update our electrical drawing.

Asked by: das
Thank you for reaching out Das! The pinout colors from pin 1 to 9 are Black (1), Brown (2), Red (3), Orange (4), Yellow (5), Green (6), Blue (7), Purple (8), Grey (9).
Answered by: Tommy
Date published: 2024-01-31
