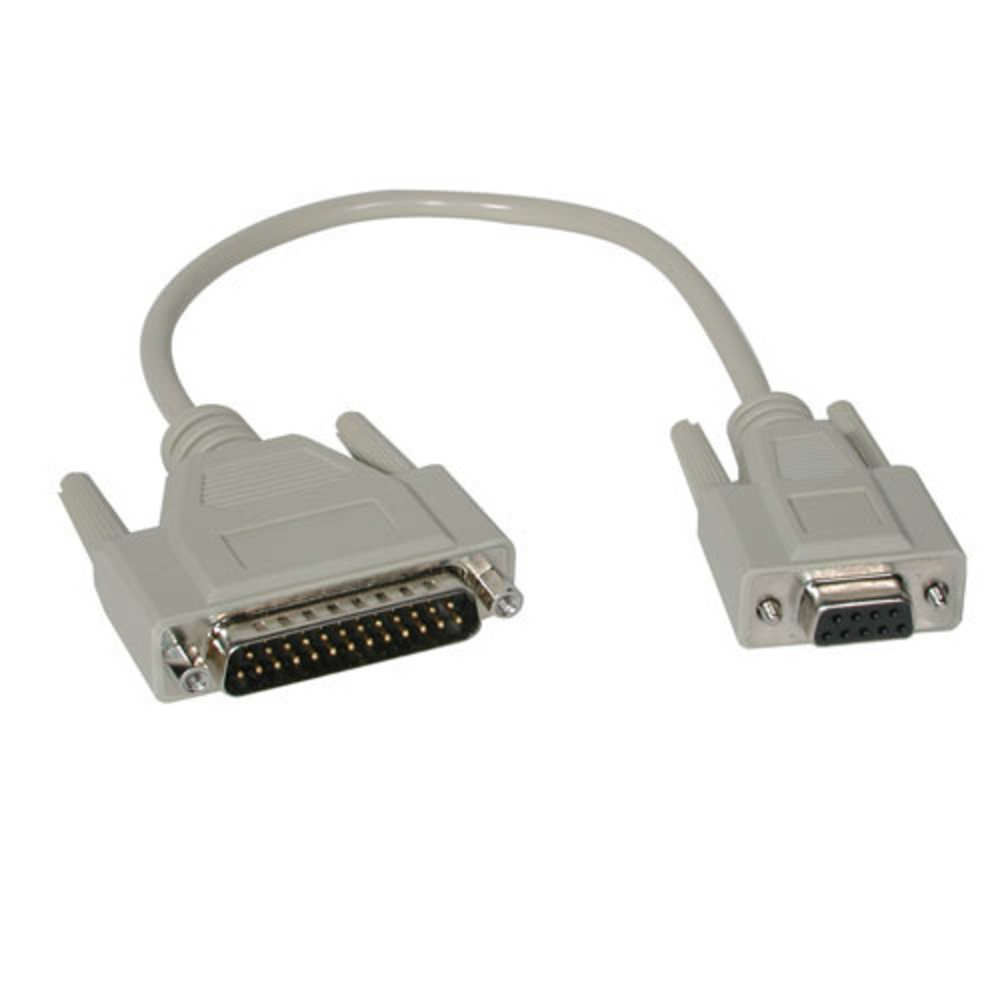

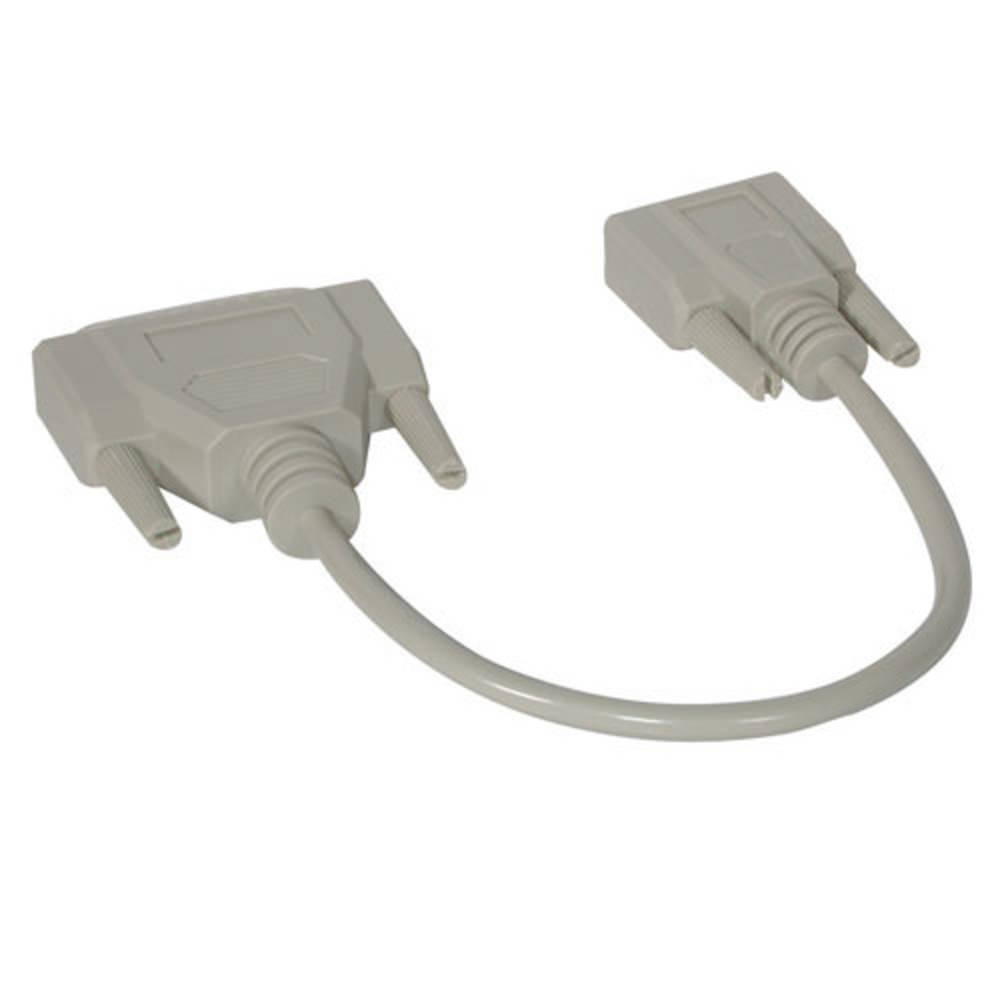

Discontinued - 1ft (0.3m) DB9 Female to DB25 Male Serial RS232 Adapter Cable

#02447 C2G
DB9 Female to DB25 Male Serial RS232 Adapter Cable is rated 4.0 out of 5 by 1.
  • y_2024, m_3, d_28, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_02447, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 56ms
  • REVIEWS, PRODUCT


An inexpensive alternative to buying a new cable. Use this adapter to adapt a DB9 port to DB25 or vice versa. The molded design provides a solid connection, and each adapter is fully shielded against outside EMI/RFI interference. With its straight-through design, this adapter is 100% compatible with all serial devices.
Connector 1:
(1) DB9 Female
Connector 2:
(1) DB25 Male
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Adapts a DB9 port to DB25 or vice versa
  • Molded design provides a solid connection
  • Fully shielded against outside EMI/RFI interference
  • 100% compatible with all serial devices

Specifications

General Info
Product Line C2G
Color Gray
UPC Number 757120024477
Country Of Origin Vietnam
Features RS232
Application Sector Commercial, Industrial, Residential
Warranty Type Lifetime
Type Adapter, Cable
Dimensions
Cable Length 1 ft
Technical Information
Jacket Material PVC (Polyvinyl Chloride)
Cable Type Adapter, Serial
Jacket Rating Standard / Non-Rated

Resources

Reviews

Rated 4 out of 5 by from DE9 female to DB25 male 1ft cable Works for HMI Display to PC connection
Date published: 2017-05-25
  • y_2024, m_3, d_28, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_02447, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 6ms
  • REVIEWS, PRODUCT

Questions & Answers

Hello, can you tell me what the PIN out is please. Thank you.

Asked by: Anonymous
The pinout on this cable is below: DB9F - DB25M 1 - 8 2 - 3 3 - 2 4 - 20 5 - 7 6 - 6 7 - 4 8 - 5 9 - 22 Shell - shell(Drain wire)
Answered by: Steve
Date published: 2017-10-06
