Discontinued - 10ft (3m) DB9 Female to DB25 Male Serial RS232 Modem Cable

#02519 C2G
DB9 Female to DB25 Male Serial RS232 Modem Cable is rated 4.9 out of 5 by 8.
  • y_2024, m_3, d_28, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_02519, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 51ms
  • REVIEWS, PRODUCT


Each modem serial cable is designed for long-lasting integrity, regardless of modem baud rates. Plus the cable is fully molded and foil shielded for EMI/RFI protection from surrounding office equipment and flourescent lights. Thumbscrew connectors provide a fast, easy connection every time. The hoods have long, easy-to-grip, slotted thumbscrews for neat, easy and durable connections.
Connector 1:

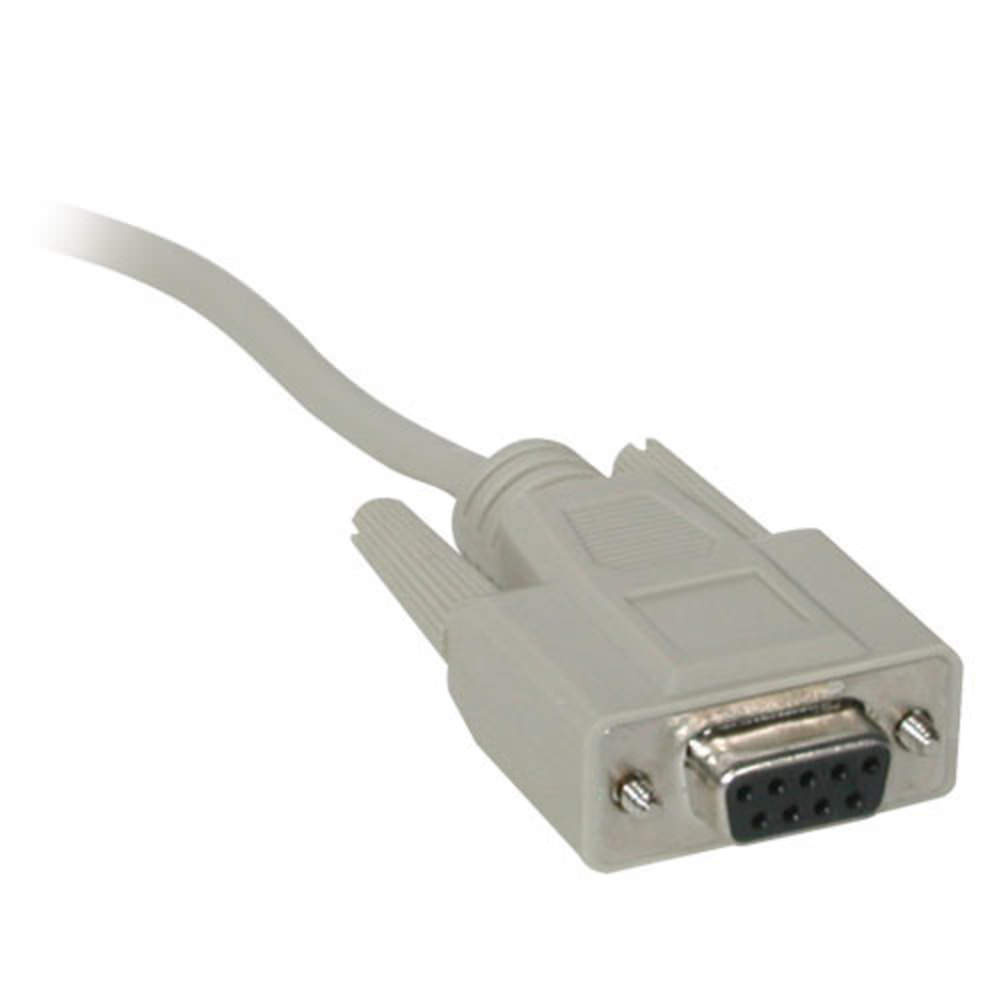

(1) DB9 Female
Connector 2:

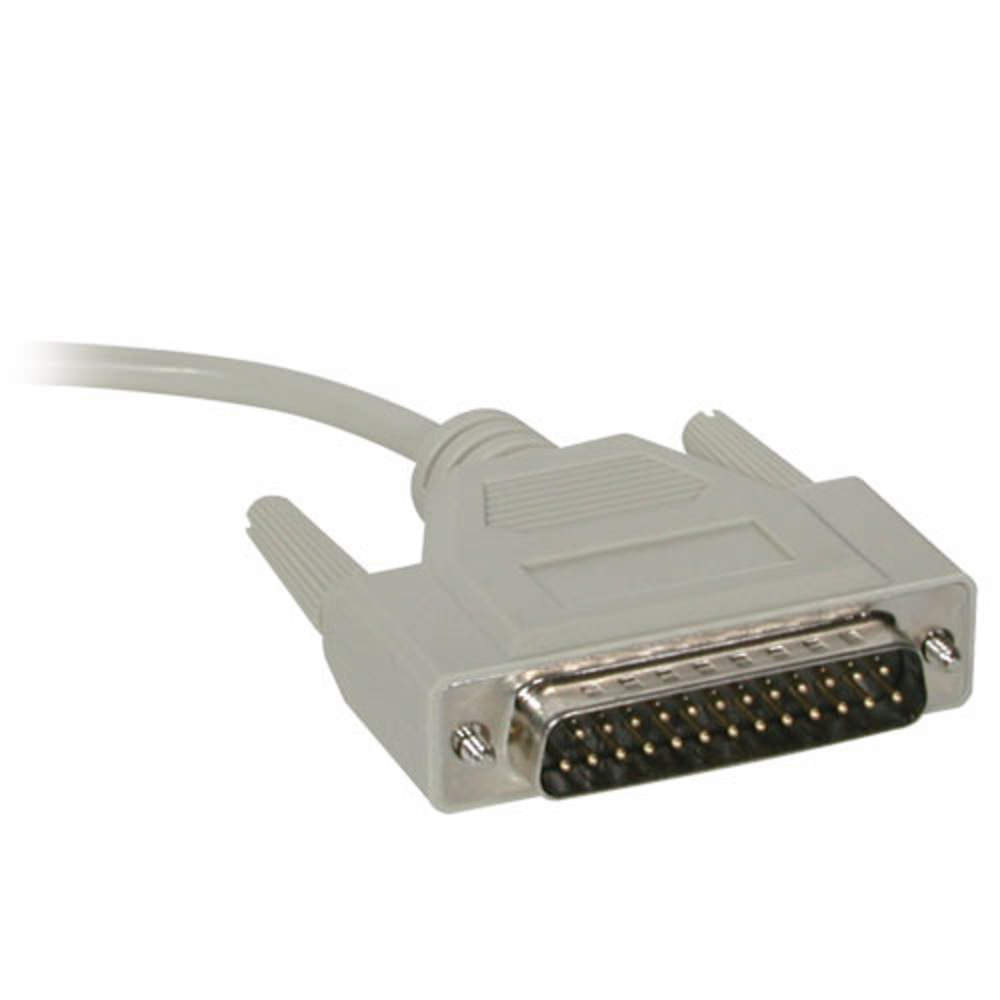

(1) DB25 Male
Length 10 ft
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Shielded to prevent unwanted EMI/RFI interference
  • Fully molded cable design
  • Connector thumbscrews for a quick and easy connection

Specifications

General Info
Product Line C2G
Color Beige
UPC Number 757120025191
Country Of Origin Vietnam
Features RS232
Application Sector Commercial, Industrial, Residential
Warranty Type Lifetime
Type Cable
Dimensions
Cable Length 10 ft
Technical Information
Jacket Material PVC (Polyvinyl Chloride)
Cable Type Modem, Serial
Jacket Rating Standard / Non-Rated

Resources

Reviews

Rated 5 out of 5 by from DB9 to DB25 I had a cable that was 20 ft long but the accompanying laptop power cable was 10 ft in length. So I opted to get a cable that was closer to the length of the power cable so that there would be no pile of excess cable under the desk...
Date published: 2016-04-27
Rated 4 out of 5 by from Cables worked perfectly! Installed them on US Robotics modems.
Date published: 2010-09-07
Rated 5 out of 5 by from Quality product for my special needs This cable replaced adapters that came with the Lab instrument. Now I have a straight connection and it actually increased the performance of the instrument.
Date published: 2014-03-25
Rated 5 out of 5 by from We buy these products regularly! Always able to find the necessary products needed quickly and easily!
Date published: 2015-08-26
Rated 5 out of 5 by from Quality cable, Great price 2 of these cables have been online with Kantronics TNCs for a couple of months now with no problems. Great quality cable at an even better price. Thank you, Chuck
Date published: 2010-04-26
Rated 5 out of 5 by from Exactly what I needed! The greatest comment I have is that no local vendor carried this cable in the length I was looking for!
Date published: 2009-06-19
Rated 5 out of 5 by from Need Parts To Retrofit Your PC? Quality Product, solid, sturdy, resilient.
Date published: 2009-05-05
Rated 5 out of 5 by from Great Service and products! Thanks!
Date published: 2009-09-09
  • y_2024, m_3, d_28, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_02519, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT

Questions & Answers

Is this cable wired for or configured for Hardware Handshaking?

Asked by: Anonymous
Please see pinout below: DB9F - DB25M 1 - 8 2 - 3 3 - 2 4 - 20 5 - 7 6 - 6 7 - 4 8 - 5 9 - 22 Shell - 1, Shell(Drain wire)
Answered by: Steve
Date published: 2021-06-18

Is this the same as a null modem cable? I need to connect an Epson TM-88iv printer via DB25 female serial port on the printer to a DB9 male serial port on the computer. It needs to be null. Will this cable work?

Asked by: Anonymous
No. You would need a null modem cable like 05715.
Answered by: Steve
Date published: 2017-10-05

I'd like to see the pinout of this cable so I can determine if it'll work

Asked by: Darrell
Here is the pinout: DB9F - DB25M 1 - 8 2 - 3 3 - 2 4 - 20 5 - 7 6 - 6 7 - 4 8 - 5 9 - 22 Shell - shell(Drain wire)
Answered by: Steve
Date published: 2017-10-05
