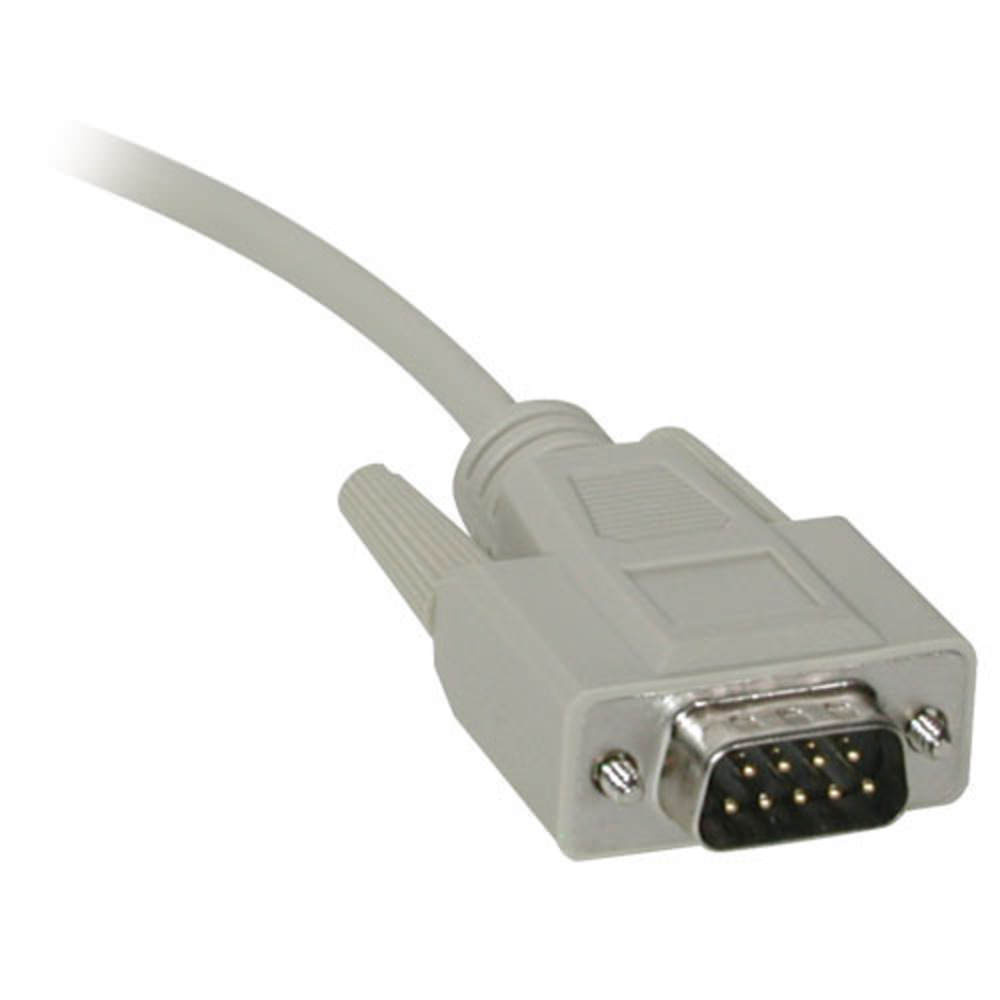

Discontinued - 15ft (4.6m) DB9 M/M Serial RS232 Cable - Beige
#09450
C2G
10ft (3m) DB9 M/M Serial RS232 Cable - Beige is rated
out of
5 by
12.
Bazaarvoice SAP Hybris Integration Version 2.8.1
Don't sacrifice convenience when determining where to place your hardware. Connect your peripheral to a switchbox, or replace a short cable that restricts your flexibility. Each cable comes fully shielded to prevent unwanted EMI/RFI interference, and the fully molded cable design delivers excellent strain relief. Connector thumbscrews provide a quick and easy connection every time. All lines are wired straight through.
Connector 1:
(1) DB9 Male
Connector 2:
(1) DB9 Male
Length
15 ft
- 10 ft
- 15 ft
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
- Send
- Save as PDF
Features
- Straight through pin-to-pin wiring
- Shielded to prevent unwanted EMI/RFI interference
- Connector thumbscrews for a quick and easy connection
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Specifications
General Info
| Color | Beige | ||
| Type | Cable | ||
| Application Sector | Commercial, Industrial, Residential | ||
| Product Line | C2G | ||
| Country Of Origin | China | ||
| Features | RS232 | ||
| UPC Number | 757120094500 |
Dimensions
| Cable Length | 15 ft |
Technical Information
| Cable Type | Serial | ||
| Jacket Material | PVC (Polyvinyl Chloride) | ||
| Jacket Rating | Standard / Non-Rated | ||
| Wire Gauge | 28 AWG |
Resources
Cutsheet
Reviews
Rated 4 out of
5
by
Kilowatt from
I will buy this product again!!!!
This is a great product and makes our control panels easy to assemble. It would be nice if the cables had flying leads or could custom make the cables.
Date published: 2010-10-05
Rated 5 out of
5
by
Mel from
15ft DB9 M/M Cable
Needed a longer cable for my washer/dryer combo. Clerks at a leading electronics store thought I was crazy! This was the first place I found what I needed. It worked perfectly and the shipping was incredibly quick!
Date published: 2012-11-01
Rated 5 out of
5
by
Science Struggler from
DB9 aka RS232 Connecter Cable
I needed to down load some software to my ham radio Transceiver, and USB wasn't working. I was amazed that 1. I no longer had an RS232 cable, and 2. it was still possible to buy one. Worked like a charm!
Date published: 2011-10-20
Rated 4 out of
5
by
Kathy from
I would buy this product again.
Used at our place of business.
Date published: 2009-08-26
Rated 5 out of
5
by
Sparks from
Extremly Good Quality and Value
I use these in a RF enviroment controling HF transmiting equipment, Cables are great quality no issues.
Date published: 2011-06-27
Rated 5 out of
5
by
Ronny L from
Hard to find cable
I was looking for a hard to find 6' ADAT sync cable. C2G was the only place I found that had one. I needed to sync and Alesis ADAT to my DAW and the normal 3' cables wouldn't do.
I hooked up the sync cable and it works, just as expected.
I not only found the cable I was searching for, I found a great source for many cables.
I'll be back.
Date published: 2021-03-01
Rated 5 out of
5
by
The Soundman from
The right cables for the job
I needed this specific length which I was unable to find among the usual suspects. It was easy enough obtaining them from Cables to Go online.
Date published: 2009-05-08
Rated 5 out of
5
by
Anonymous from
Great source for rare cables
Only source for 12" M-M RS-232 cable I found. Thumbscrews removable if needed.
Awesome service.
Date published: 2021-01-11
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
What is the outside diameter of the cable?
The O.D. of this cable is 4.5mm.
Date published: 2018-09-27
On Part # 52087 DB9 M/M can you tell me if there is a drain wire in this cable going from shell to shell
In product 52087 there is a drain wire that runs from shell to shell.
Date published: 2017-10-05
does this cable have all 9 conductors?
Yes. It is wired all lines straight through.
Date published: 2017-10-05
Do you carry db9 patch cords that only have 2,3 and 5 connected on both ends? Thank you, John
We do not carry this as a standard cable. You would need to submit a request for quote in order to ensure that pin out.
Date published: 2017-10-06
Do you know if this cable is straight through or Null (Cross)?
All lines are wired straight through.
Date published: 2017-10-06
Are the cables identifiable if it is necessary to cut and end off and put into screw terminal?
There is a color code on the wiring inside the cable, and markings on the cable jacket for identification.
Date published: 2019-10-03
I require this cable in 24AWG wire or heavier wire. Anyone know what the wire gauge is on the 9 wires in this cable? Spec doesn't list it.
Product 09449 uses 28AWG conductors.
Date published: 2017-10-05
For item #52087, what is the color code of the inside conductors in relation to the pinout? I'm looking to match this up to an existing cable and need to know if I will need to update our electrical drawing.
Thank you for reaching out Das! The pinout colors from pin 1 to 9 are Black (1), Brown (2), Red (3), Orange (4), Yellow (5), Green (6), Blue (7), Purple (8), Grey (9).
Date published: 2024-01-31
