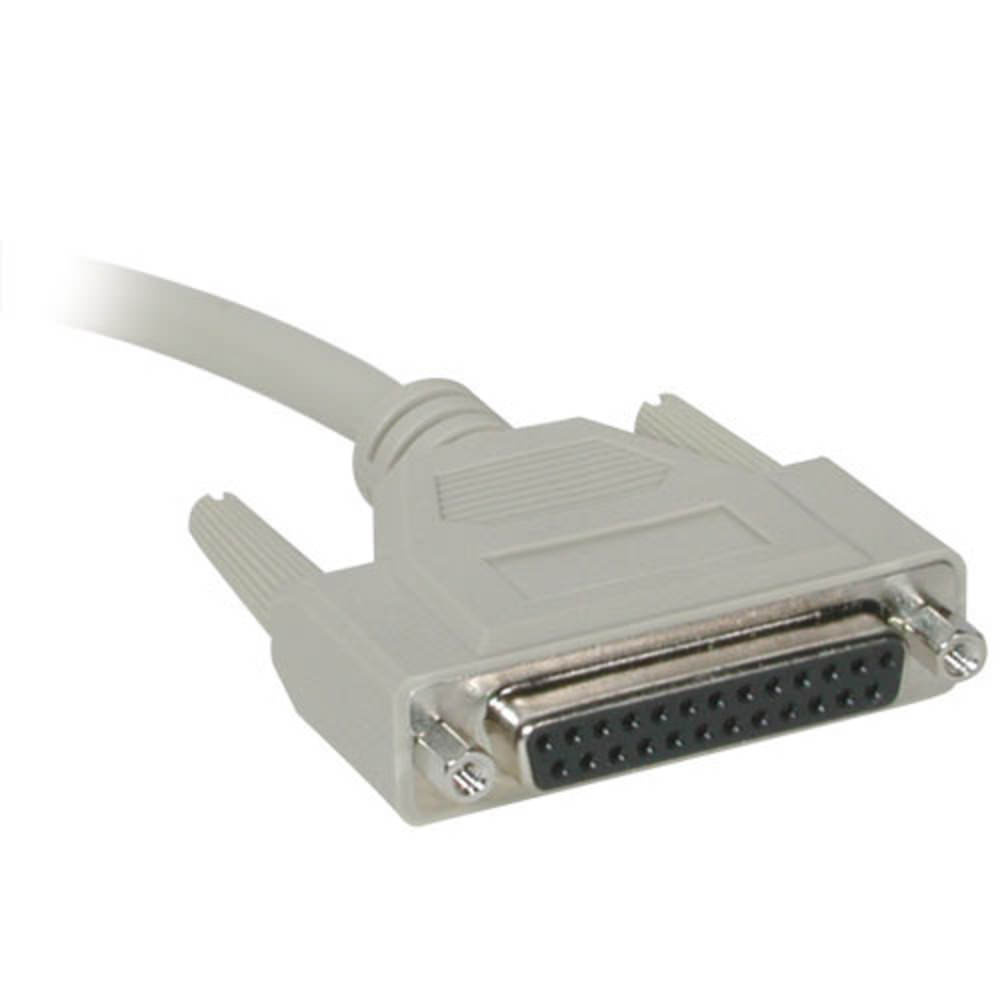

DISCONTINUED: 50ft (15.2m) DB25 M/F Serial RS232 Extension Cable

#02662 C2G
DB25 M/F Serial RS232 Extension Cable is rated 4.8 out of 5 by 17.
  • y_2022, m_12, d_8, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_17
  • loc_en_US, sid_02662, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 33ms
  • REVIEWS, PRODUCT

$33.99 $50.99 MSRP USD


Easily extend your cable at a lower cost than buying a new cable. All 25 lines are wired straight through pin-to-pin for ease of compatibility. Each cable is foil shielded for EMI/RFI protection, and is available fully molded with thumbscrew connectors for a fast, easy connection every time.
Connector 1:
(1) DB25 Male
Connector 2:
(1) DB25 Female

Features

  • Easily extend an RS-232 or parallel cable
  • Foil shielded for EMI/RFI protection
  • All 25 lines are wired straight through
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Specifications

General Info
Product Line C2G
Color Beige
UPC Number 757120026624
Country Of Origin China
Application Sector Residential, Commercial, Industrial
Type Cable
Dimensions
Cable Length 50 ft
Technical Information
Jacket Material PVC (Polyvinyl Chloride)
Wire Gauge 28 AWG
Cable Type Serial, Extension
Jacket Rating Standard Non-Rated

Reviews

Rated 5 out of 5 by from great deal Is built well, good, solid, rugged cable. Good performance and design
Date published: 2011-05-09
Rated 5 out of 5 by from Great resource I needed a short extension to increase serviceability and this was exactly what I needed.
Date published: 2014-05-10
Rated 5 out of 5 by from Solid product. Helpful people. Solid generic item.
Date published: 2015-09-21
Rated 5 out of 5 by from Perfect: great product for a great price Used to connect HP printers to the controller for Industrial Printers
Date published: 2017-02-22
Rated 5 out of 5 by from This is a very good product. We use this cord on a daily basis. We use it to extend our cord on our hand help programmer on wind turbines. This cord is very ruged and has held up very well.
Date published: 2012-09-19
Rated 4 out of 5 by from Works as advertised Product is used as an extension for RS-232 inputs on CNC machines. Works as advertised, no problems to date. Solid construction. Would recommend.
Date published: 2012-02-16
Rated 5 out of 5 by from Solidly built cable I ordered this as a replacement cable for a piece of audio equipment. This cable is rock solid and cost me a LOT less than the replacement cable offered by the manufacturer.
Date published: 2009-12-04
Rated 5 out of 5 by from Darn Good Cables I used these to interface a Ham Radio control box to my radios. It works very well in a high radio frequency field environment. I am very pleased with these cables.
Date published: 2010-11-17
  • y_2022, m_12, d_8, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_17
  • loc_en_US, sid_02662, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT

Questions & Answers

What color is the cable jacket?

Asked by: Anonymous
Beige (Pantone / #7535C)
Answered by: Sean
Date published: 2017-10-05

Requesting Pinout of the cable.

Asked by: Yoda
This is a straight through pinout with all pins connected
Answered by: Tom
Date published: 2022-02-04

Hello, Do you have any DB25 1-1 cables using twisted pairs? 1&2 twisted 3&4 twisted and so on. many thanks, K

Asked by: Anonymous
We do not. You could get a custom quote. http://www.cablestogo.com/custom-and-oem/overview
Answered by: Steve
Date published: 2021-03-16

Please send me the color coding of the wires for the different pin numbers

Asked by: Anonymous
Emailed spec sheet
Answered by: Anonymous
Date published: 2017-10-05

What is the AWG of the 25 connectors? What is the resistance of the cable?

Asked by: Anonymous
This cable uses 28AWG wire.
Answered by: Steve
Date published: 2017-10-05

Is the cable "twisted pair" internally?

Asked by: dburkhead
This cable does not use twisted pair. It uses straight conductors.
Answered by: Steve
Date published: 2017-10-05
