DISCONTINUED: 11in DB9 Male Serial RS232 Add-A-Port Adapter Cable

#02882 C2G
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 26ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Add loudspeakers to audio/video installations in training rooms, conference rooms or classrooms. The compact size of these speakers ensures installation flexibility, while a 3-way speaker design delivers a clear, crisp audio signal. Mounting is easy because of the universal bracket design, or attach the speakers to a suspended ceiling track with our optional mounting clips (item #40540, not included). At 40 watts per channel, these speakers provide plenty of capacity for everyday audio needs.

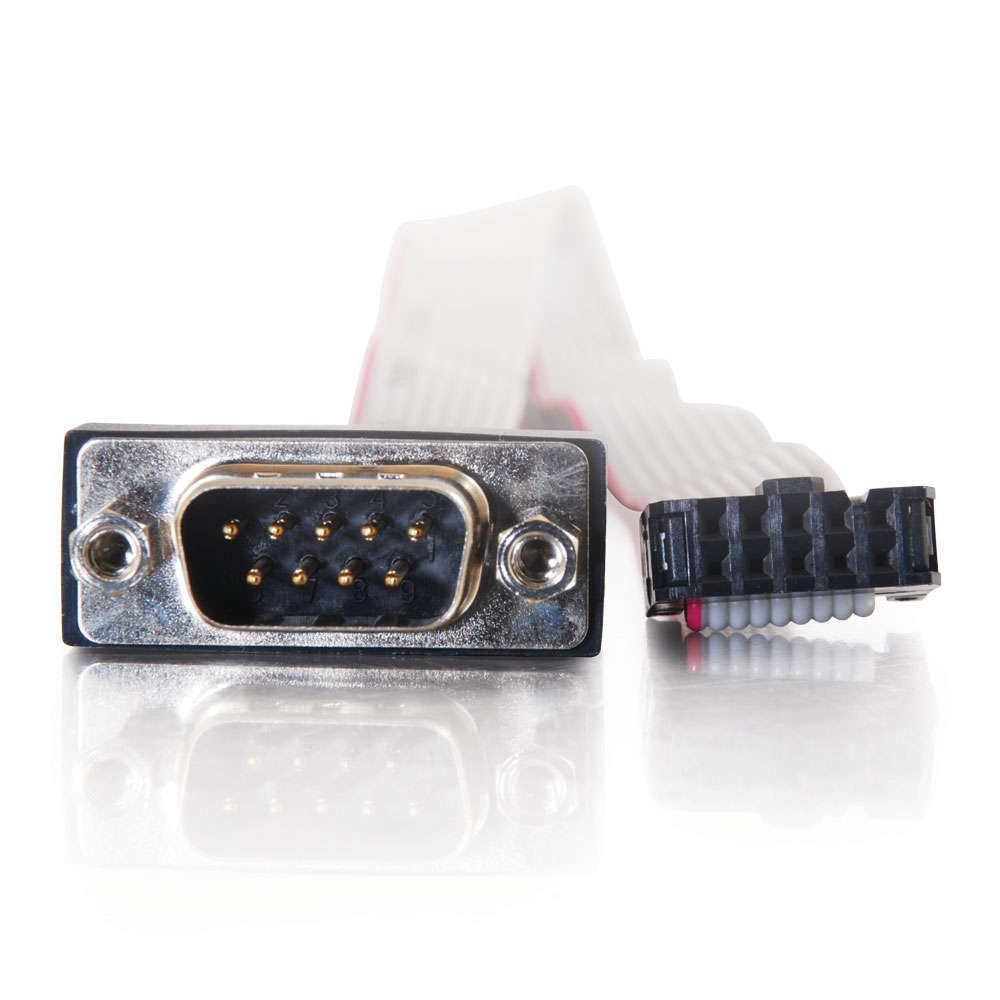

Connector 1:
(1) 10-pin IDC Female
Connector 2:
(1) DB9 Male
Length 11 in
WHERE TO BUY

Specifications

General Info
Product Line C2G
UPC Number 757120028826
Country Of Origin China
Application Sector Residential, Commercial, Industrial
Warranty Type Lifetime
Type Cable, Adapter
Dimensions
Cable Length 0.92 ft
Technical Information
Jacket Material PVC (Polyvinyl Chloride)
Cable Type Serial, Adapter
Jacket Rating Standard Non-Rated

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Questions & Answers

Is this Intel or Everex pinout?

Asked by: Bluennile
This uses a INTEL pin out.
Answered by: Thomas
Date published: 2018-05-10

Will this work with an HP Capshare 920?

Asked by: Gary
This is an add a port adapter as long as the mother board supports the 10pin IDC then this cable will work to add a serial port.
Answered by: Thomas
Date published: 2017-10-09

Is there a version of this cable that has a 2.0mm version of the motherboard connector?

Asked by: Paul
Not that we offer.
Answered by: Tom
Date published: 2017-10-06

Do you have a cable similar to 02882, but with a DB9 Female connector?

Asked by: Mike
Unfortunately we do not have this in a female version.
Answered by: Tom
Date published: 2017-10-06

How long is the cable?

Asked by: Captain Ron
The cable is 11in.
Answered by: Steve
Date published: 2017-10-06

Is this the Intel/DTK (old) standard or the Intel/AT/Everex (new) standard wiring? The Everex is 1 to 1, 2 to 2, 3 to 3,....

Asked by: Serious
This would be the crossed configuration. It would not match the Everex pinout that you listed. IDC-DB9 1-1, 2-6, 3-2, 4-7, 5-3, 6-8, 7-4, 8-9, 9-5.
Answered by: Steve
Date published: 2018-05-08

What is the pitch on the 10 pin IDC header?

Asked by: Anonymous
The 10 pin IDC connector has a 2.54mm pitch.
Answered by: Steve
Date published: 2017-10-06

Does this cable come with a female d connector version

Asked by: gary
No. You could use a DB9 gender changer to make it a female (02781).
Answered by: Steve
Date published: 2017-10-05
