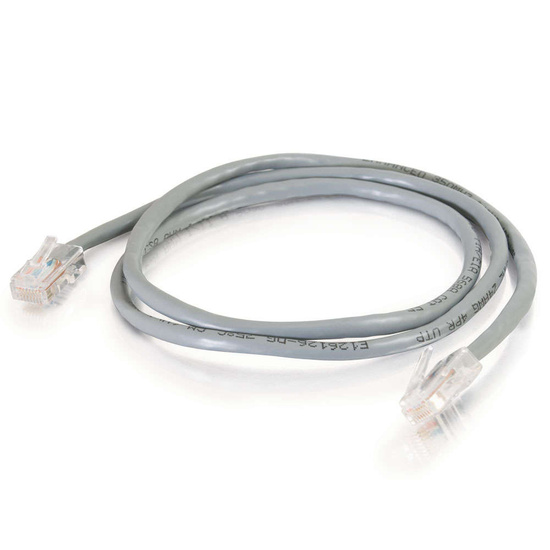

Discontinued - 5ft (1.5m) Cat5e Non-Booted Unshielded (UTP) Network Crossover Patch Cable - Gray

#24498 C2G
Cat5e Non-Booted Unshielded (UTP) Network Crossover Patch Cable is rated 4.8 out of 5 by 8.
  • y_2024, m_10, d_12, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_24498, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 24ms
  • REVIEWS, PRODUCT


This Cat5e network crossover patch cable is an ideal solution for connecting two computer to share files or data. The crossed pin configuration allows two computers to be connected peer-to-peer without the need for a hub or switch. This cable may also be used to connect network switches and hubs without an uplink port to other switches and hubs. This cable is constructed to meet all Cat5e TIA/EIA standards, and has been designed to drastically reduce both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels.
Connector 1:
(1) RJ-45 Male
Connector 2:
(1) RJ-45 Male
Color Gray
Length 5 ft
  • Add to favorites Remove from favorites
  • Send
  • Save as PDF

Features

  • Perfect for networking two PCs together
  • Standard RJ45 connectors
  • Available in 7 colors to color-code a network
  • Available in lengths up to 25ft
  WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Specifications

General Info
Product Line C2G
Color Gray
UPC Number 757120244981
Country Of Origin Vietnam
Application Sector Commercial, Industrial, Residential
Type Cable
Dimensions
Cable Length 5 ft
Outside Diameter 5.3 mm
Technical Information
Jacket Material PVC (Polyvinyl Chloride)
Category Performance Rating Cat 5e
Wire Gauge 24 AWG
Shielded/Unshielded Unshielded
Conductor 4-Pair Twisted
Cable Type Crossover, Ethernet Patch Cable, Unbooted, Unshielded (UTP)
Jacket Rating Standard / Non-Rated
Cable Diameter 5.3 mm
Indoor/Outdoor Indoor
Bandwidth 350 mHz
Operating Temperature -20°-80°C

Resources

Reviews

Rated 5 out of 5 by from Satisified customer Cable is being used between router and 27 inch iMac in my photo business. I prefer wired devices because they are more reliable than wireless. I chose your wires because of your online access and easy to use website. We are talking now because of your sturdy cable. Suggestion: Print your name and a repurchase number on your cables so people get a discount when they reorder.
Date published: 2012-03-14
Rated 5 out of 5 by from Outstanding solution. When I'm working on a client's machine and need it to go online for updates or installations, I just attach it to my laptop and share the wireless connection through the laptop's ethernet card. With Cables to Go's crossover solution I don't need to connect the client's computer to my router in the other room. Simplicity and convenience at an affordable price. Thanks Cables to Go!
Date published: 2010-02-01
Rated 5 out of 5 by from Orange Crossover cables are a must. It is critical one uses a bright color in the crossover cable needed with First Robotics entries since students are learning so much so fast. The color makes it much easier to keep the many cables straight.
Date published: 2010-07-20
Rated 5 out of 5 by from Works great. Connecting PC to National Instrument LabView Real time processor.
Date published: 2010-07-28
Rated 5 out of 5 by from Great Product Cross cable for MultiVista
Date published: 2009-10-26
Rated 5 out of 5 by from 14 Foot Cat5E cable Very Satisfied with the quality of the cable
Date published: 2010-12-27
Rated 4 out of 5 by from Quality construction PC patch to IP communication hardware.
Date published: 2011-06-15
Rated 4 out of 5 by from Price was right - Delivery was fast - Order was ac Price was right - Delivery was fast - Order was accurate and thats important to me. thanks and well done
Date published: 2018-04-02
  • y_2024, m_10, d_12, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_24498, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 6ms
  • REVIEWS, PRODUCT

Questions & Answers

what are the pinouts?

Asked by: Bob
White/Orange, Orange, White/Green, Green, White/Blue, Blue, White/Brown, Brown This is for pins 1-8
Answered by: Tom
Date published: 2017-10-05
