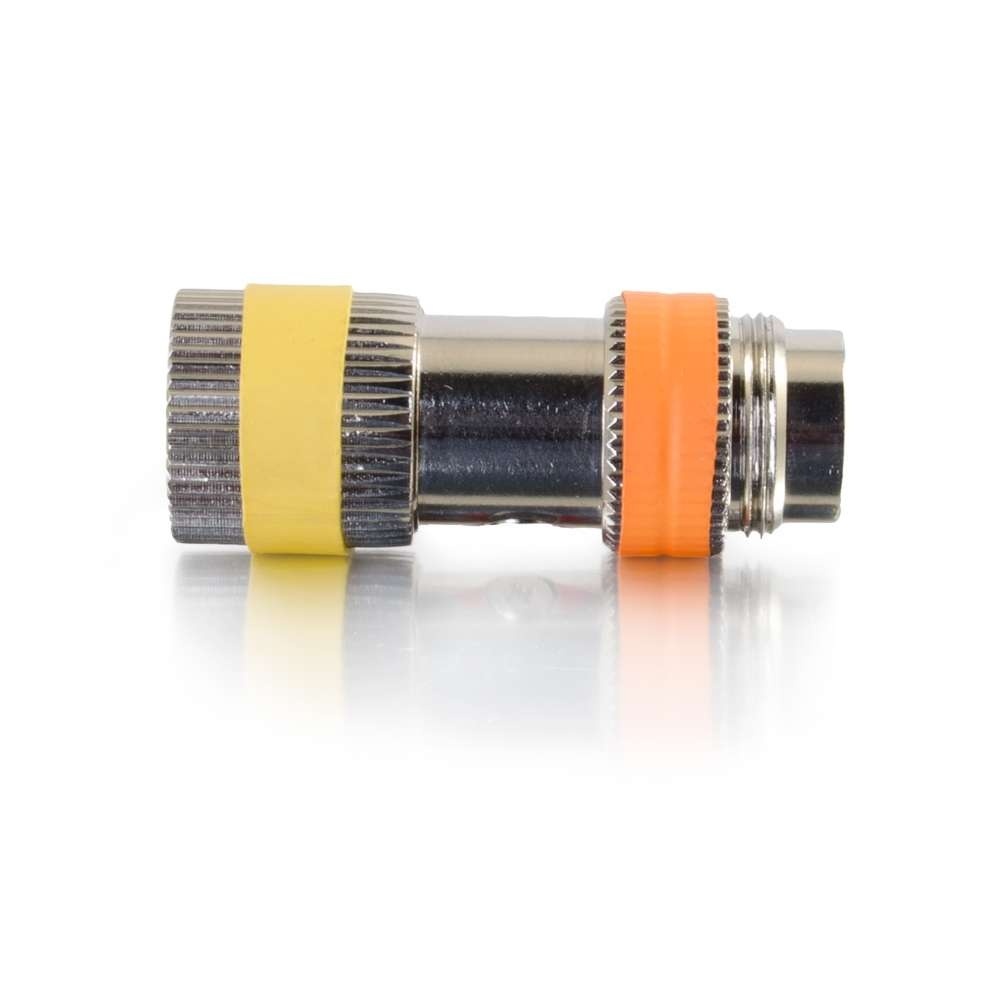

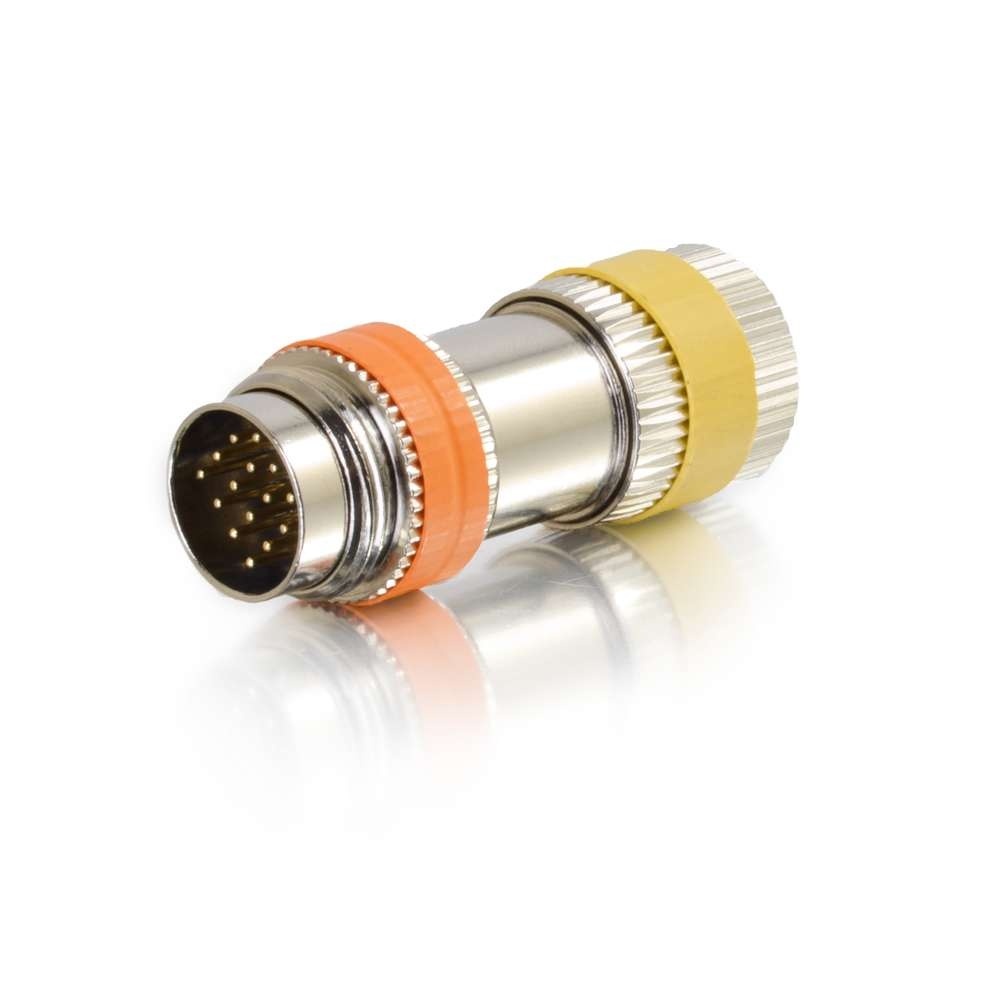

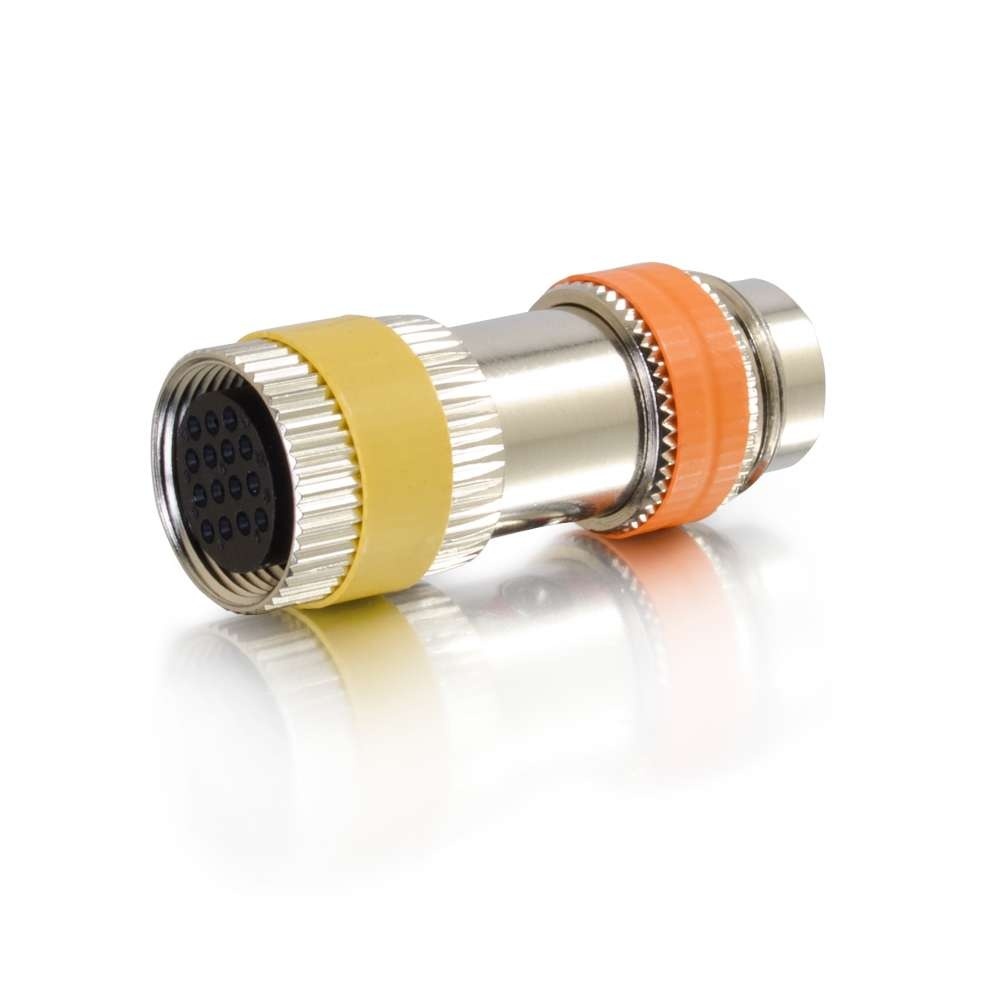

Discontinued - RapidRun® Multi-Format (Orange) Runner to PC (Yellow) 15-pin Din Adapter
#60068
C2G
RapidRun® Multi-Format (Orange) Runner to PC (Yellow) 15-pin Din Adapter is rated
out of
5 by
3.
Bazaarvoice SAP Hybris Integration Version 2.8.1
Adapt RapidRun PC (yellow) runner cables to Multi-format (orange) flying leads and wall plates. Ideal for situations when replacing existing PC flying leads and wall plates with Multi-format flying leads and wall plates.
If PC (yellow) flying leads/wall plates are used with a Multi-Format (orange) runner, then an adapter must be used on both ends of the runner cable. This adapter requires that a PC (yellow) flying lead/wall plate be used on both ends of the runner cable.
Please Note: While using this adapter the entire solution wil be converted to the design, features, and benefits of the PC solution. To receive the features and benifits of the Multi-format design, Multi-format flying lead and/or wall plate must be installed at both ends of a Multi-format runner cable.
If PC (yellow) flying leads/wall plates are used with a Multi-Format (orange) runner, then an adapter must be used on both ends of the runner cable. This adapter requires that a PC (yellow) flying lead/wall plate be used on both ends of the runner cable.
Please Note: While using this adapter the entire solution wil be converted to the design, features, and benefits of the PC solution. To receive the features and benifits of the Multi-format design, Multi-format flying lead and/or wall plate must be installed at both ends of a Multi-format runner cable.
Connector 1:

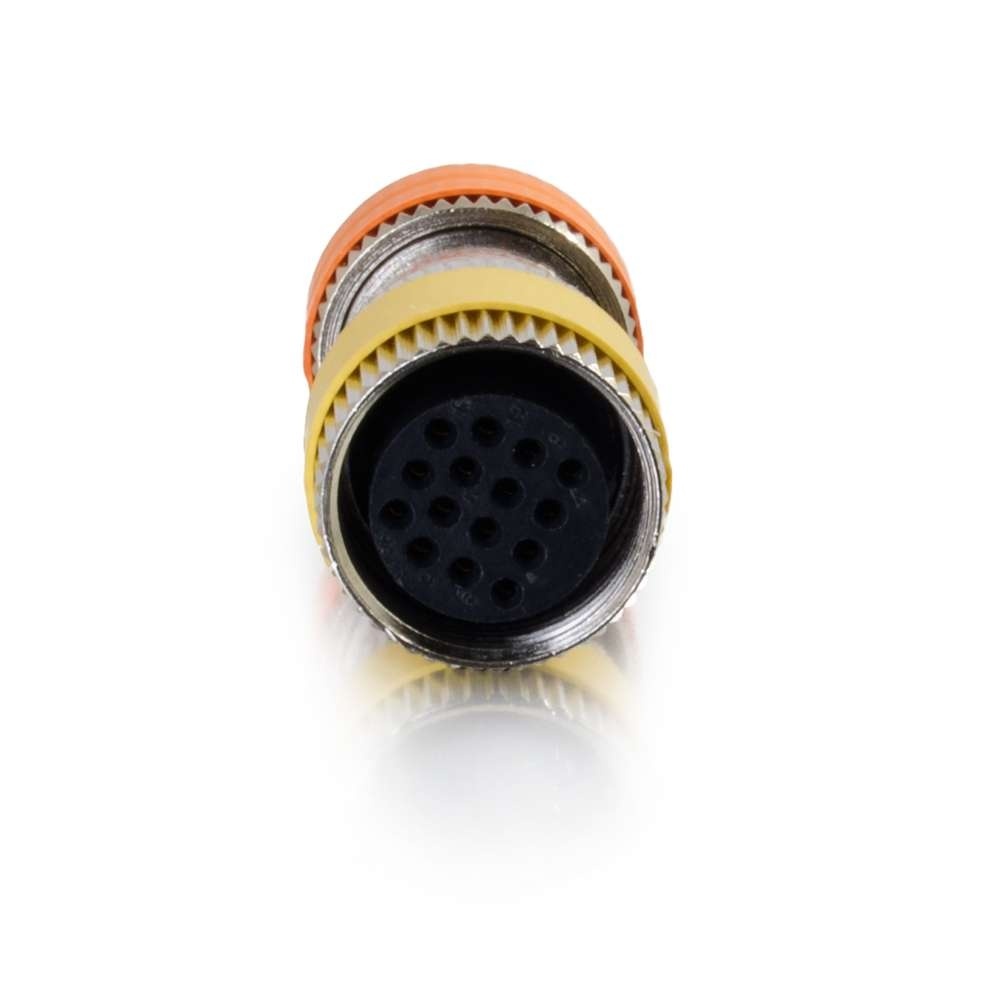

(1) RapidRun 15-pin Female
Connector 2:

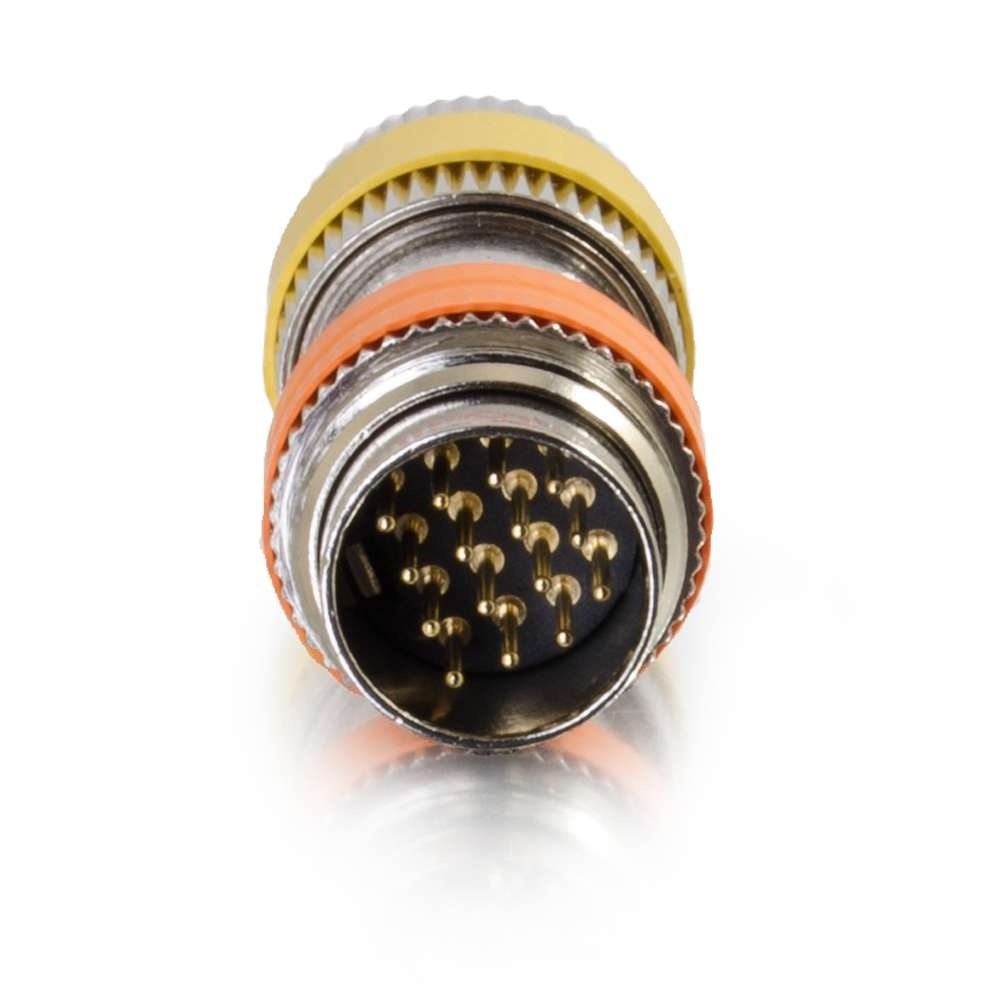

(1) RapidRun 15-pin Male
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Specifications
General Info
Product Line | C2G | ||
Color | Brushed Stainless Steel | ||
UPC Number | 757120600688 | ||
Country Of Origin | China | ||
Application Sector | Commercial, Residential | ||
Warranty Type | Lifetime | ||
Type | Adapter |
Technical Information
Video Resolution | UXGA (1600x1200) | ||
Data Transfer Rate | 18 Gbps |
Resources
Cutsheet
Reviews
Rated 3 out of
5
by
CPDI from
Are these even needed??
We had an existing YELLOW system having problems and since they discontinued the replacement ends (don't get me started on that). I purchased new Orange end and these adapters. The tech swapped out and got the system working. Great! I get the materials back (I sent a few options since we were unsure of what we would find) and the adapters are out of the packaging and not used. I sent both kinds Yellow to Orange and Orange to Yellow.
So the system works without the adapters and I can't get the pinout details from C2G to figure out which is Orange to Yellow and which is Yellow to Orange. Tech support was no help to that little mystery.
Good to see they added color bands. Design Flaw partially corrected.
Date published: 2013-07-31
Rated 1 out of
5
by
Mercer from
Needs More Markings
The product functions well but it neeads some type of marking to make it appear differently then the 60068. My suggestion would be either a color band(Orange and Yellow) or even a painted dot to represent how this adapter should be to plug in.
Date published: 2013-05-17
Rated 4 out of
5
by
Mercer from
Color Coded Bands Was a Good Modification
I thank you for making the suggested change of having colored bands for the Yellow end and the Orange end.
Date published: 2016-06-08
