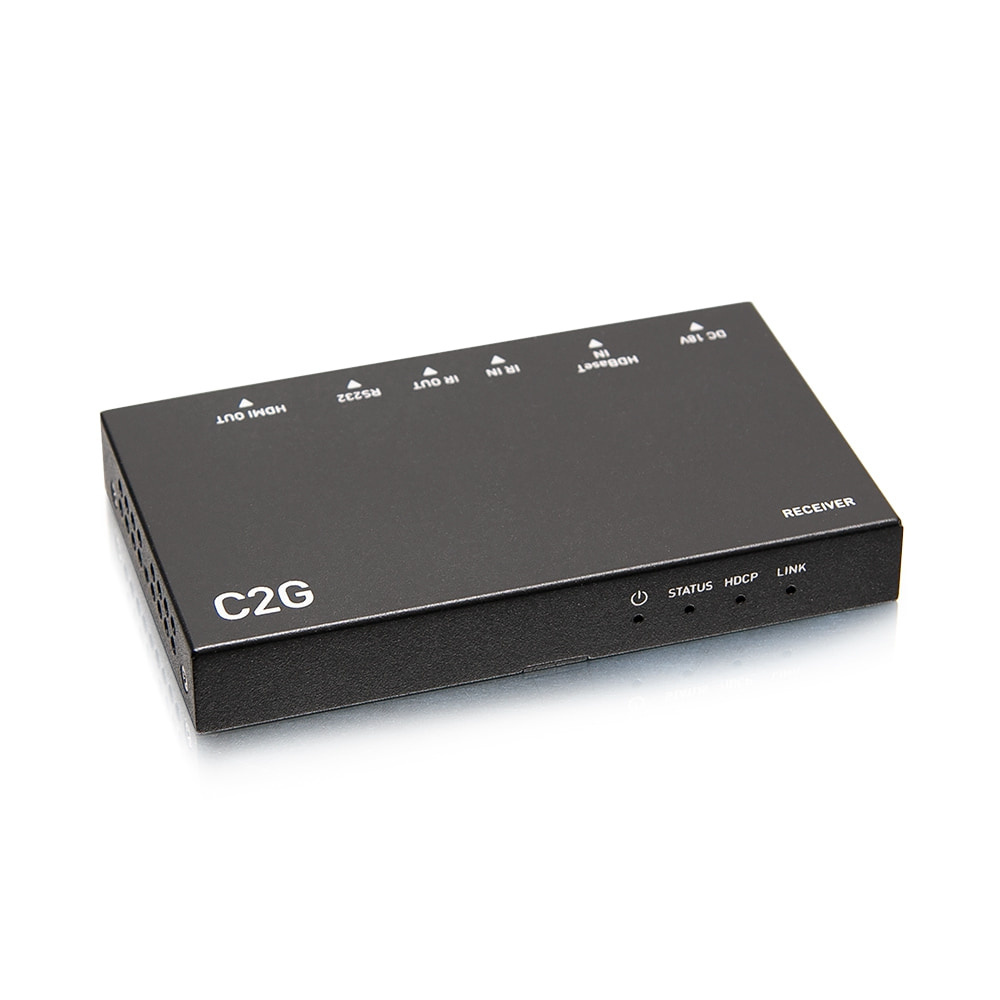

DISCONTINUED: HDMI® Ultra-Slim HDBaseT + RS232 And IR over Cat Extender Box Receiver - 4k 60hz

#C2G30015 C2G
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 94ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Note: This item has been discontinued, please see the C2G suggested replacement SKU: C2G31015

The HDMI Ultra-Slim HDBaseT + RS232 And IR over Cat Extender Box Receiver - 4k 60hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

This receiver accepts HDMI signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.

This HDMI HDBaseT receiver is HDCP 2.2 compliant, making sure that the connection from the source is secure. With bi-directional PoC support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through.

This HDBaseT receiver works with C2G30014C2G30017C2G30018 transmitters.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded, solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled, is run near other high-frequency signaling cables, or in high EMI/RFI environments. For best performance use an HDBaseT Certified Cat6a Patch Cable.

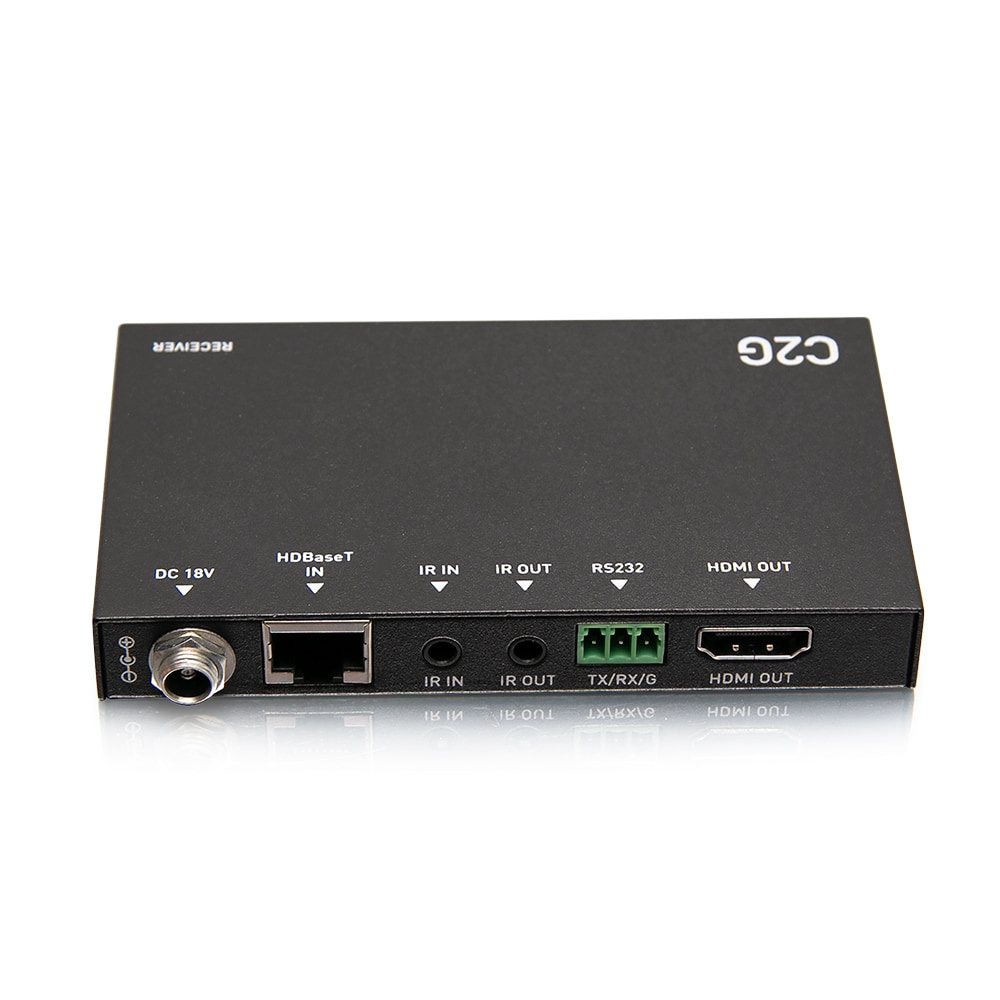

Connector 1:
(1) RJ45 Female, (1) DC Power Plug
Connector 2:
(1) HDMI Female
Color Black
WHERE TO BUY

Features

  • • Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • • Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • • HDCP 2.2 compliant, to create a secure connection between the source and display
  • • Supports CEC pass-through, allowing central control to all HDMI compatible devices
  • • Supports bi-directional IR and RS232 pass-through
  • • Bi-directional PoC, one power adapter at either transmitter or receiver side can power both units
  • • HDBaseT Chipset VS010, for simpler HDBaseT installations
  • Compatible Transmitters: C2G30014, C2G30017, C2G30018, C2G30021, C2G30022, C2G31017 (Coming Soon)
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Specifications

General Info
Product Line C2G
UPC Number 757120300151
Country Of Origin China
Application Sector Commercial
Warranty Type 3-Year
Type HDBaseT, Receiver
Technical Information
Jacket Material PVC (Polyvinyl Chloride)
Video Resolution 4K 60Hz, 4K 30Hz, 4K, 1080p 60Hz, 1080p
Data Transfer Rate 10.2 Gbps
Operating Temperature 0 C, 45 C
Storage Temperature -20 C, 70 C
