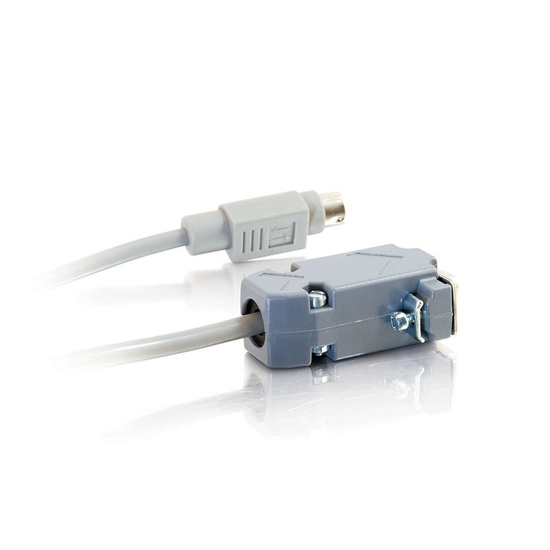

Discontinued - 6ft (1.8m) DB9 Female to 8-pin Mini Din Serial RS232 Male Adapter Cable

#25041 C2G
DB9 Female to 8-pin Mini Din Serial RS232 Male Adapter Cable is rated 5.0 out of 5 by 2.
  • y_2024, m_3, d_28, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_25041, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 54ms
  • REVIEWS, PRODUCT


This cable enables communication from an AMX®, Crestron®, or Extron® control system; communication from a PC by using the NEC PC control utility for basic projector control; communication from a PC by using the NEC geometric correction tool for adjusting a projector to display an image on a cylindrical, spherical or corner screen; communication from a PC by using the NEC image express utility to send images to the projector for presentations as well as basic projector control, projector lamp and error status or asset management. Flexible PVC jacket; nickel-plated connectors; rugged connector hoods; 28 AWG conductors.
Connector 1:
(1) DB9 Female
Connector 2:
(1) 8-pin Mini Din Male
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Adapts a DB9 male connection to an 8-pin Mini Din Serial RS 232 connection

Specifications

General Info
Product Line C2G
Color Gray
UPC Number 757120250418
Country Of Origin China
Features RS232
Warranty Type Lifetime
Type Adapter, Cable
Dimensions
Cable Length 6 ft
Technical Information
Jacket Material PVC (Polyvinyl Chloride)
Wire Gauge 28 AWG
Cable Type Adapter, Serial
Jacket Rating Standard / Non-Rated

Resources

Reviews

Rated 5 out of 5 by from 6ft DB9 Female to Mini Din 8Pin Male Cables are perfect for RS-232 control for high-end audio equipment. Easy to use. Plug and start the data bits.
Date published: 2009-10-05
Rated 5 out of 5 by from klassen They sent me the excect cable that I had ordered, thank you.
Date published: 2022-09-13
  • y_2024, m_3, d_28, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_25041, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cablestogo
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 6ms
  • REVIEWS, PRODUCT

Questions & Answers

What is the Pin-out for this DB9 to 8-pin DIN?

Asked by: Shane
What if you are connecting this to a Crestron system and a polycom group 500. All the research i have shows it just a standard cross over pin out. Meaning 2-3 3-2 5-5 Is your cable a special pin out?
Answered by: Michael
Date published: 2020-12-14

I am wondering if I can get this cable (DB9 femal to 8-pin Mini Din Male Adapter Cable) in a 25 foot length? I would prefer a single cable to the option of using an extension. The application is to connect laboratory equipment to a PC.

Asked by: Loreen
You could inquire about a custom cable assembly from the link below to have a custom length of that cable made. http://www.cablestogo.com/custom-and-oem/overview
Answered by: Steve
Date published: 2017-10-06

Will this cable work with NEC MT1050 as projector control cable? MT1050 - Pinout (1)to TxD of PC, (4)GND to PC, (7)to RxD of PC

Asked by: Doc
Yes, this would work in your application.
Answered by: Michael
Date published: 2017-10-06

Is this cable bi-directional? Two way comunication.

Asked by: Anonymous
This cable is Bi-Directional however this Sends the communication signal from your control system to your NEC plasma or projector and has a specialty pin out.
Answered by: Tom
Date published: 2017-10-05

In case we have to use other pins on the connector whats the color scheme of the cable to the 8 pin connector?

Asked by: Robert Menendez
DB9 8pin Din 2 7 3 1 5 4 This is the pin out of the cable. There are no other conductors from what we can tell. This is sold and build directly from NEC and we can not provide any other information.
Answered by: Tom
Date published: 2017-10-05
